Description

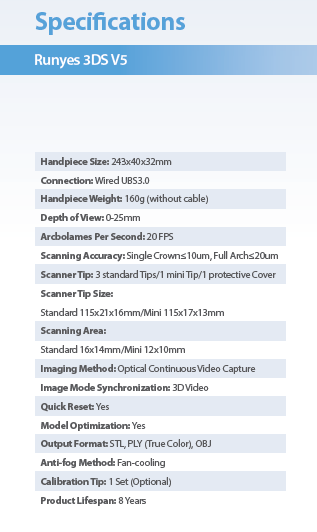

Specifications
- Handpiece Size: 243x40x32mm
- Connection Method: Wired USB 3.0
- Handpiece Weight: 160g (without cable)
- Depth of View: 0-25mm
- Arcbolames Per Second: 20 FPS
- Scanning Accuracy: Single Crown≤10um, Full Arch≤20um
- Scanner Tip: 3 standard Tips/1 mini Tip/1 protective Cover
- Scanner Tip Size: Standard 115x21x16mm/Mini 115x17x13mm
- Scanning Area: Standard 16x14mm/Mini 12x10mm
- Imaging Method: Optical Continuous Video Capture
- Image Mode Synchronization: 3D Video
- Quick Reset: Yes
- Model Optimization: Yes
- Output Format: STL, PLY (True Color), OBJ
- Anti-fog Method: Fan-cooling
- Calibration Tip: 1 Set (Optional)
Touchscreen All-in-One (Optional) Configuration
- Operating System: Windows 11
- Display: 23.6″ White Touchscreen
- Processor: 12th Gen Intel® Core™ i7-12700
- Graphics: MSI GeForce GTX 3060 with 12GB VRAM
- Memory: 32GB DDR4
- Storage: 1TB High-Speed Drive
- Resolution: 1920 × 1080
- UPS Battery: Built-in, approx. 2 hours of backup time
- Audio: Integrated 2.0-channel high-quality speakers

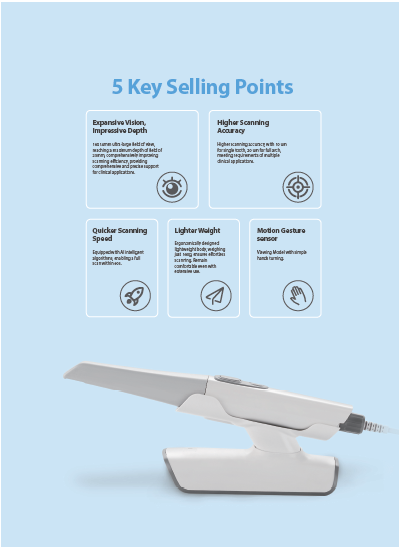

Product Advantages
- Quicker Scanning Speed
Equipped with AI intelligent algorithms, enabling a full scan in as fast as 60s.
- 160g Lightweight Design
– Lightweight scanner handpiece-only 160g.
– Allows easy scanning for long hours without hand fatigue.
- One-piece Casing
Seamless construction allows for easy wiping and improved handling comfort.
- Extended Scanning Tip
Scans a wider area without the tip touching the Handpiece – ensuring safer and more reliable infection control.
- Newly Added Motion-Sensing Button
Newly added motion gesture control enables easy switching between the upper and lower jaws with a single touch, making remote operation simpler and smarter.
- Newly Added Secondary Control Button
Allows for simpler upper jaw scanning.
- Improved depth of field up to 25mm
Maximum FOV 16x14mm
- Universal Type-C Data Cable
Using a direct Type-C data cable connection for enhanced stability.
- Special Cable End Design
Ensures a secure connection with a plug-and-play design, making cable replacement easy and convenient.
- Scanner tips capable of withstanding 100 cycles of high-temperature and high-pressure sterilization.
Standard configuration includes 3 standard scanner tips and 1 mini scanner tip, all able to endure 100 cycles of high-temperature and high-pressure sterilization.
- No need for periodic calibration

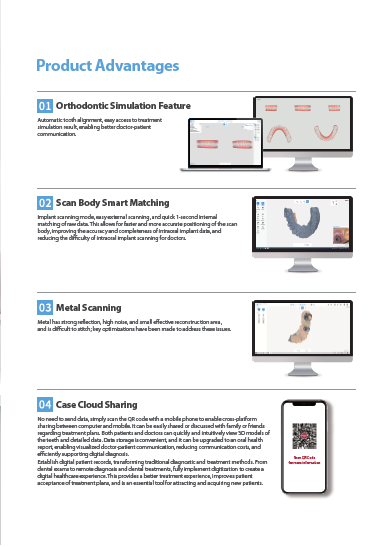

- Orthodontic Simulation Feature
Automatic tooth alignment, easy access to treatment simulation results, enabling better doctor-patient communication.
- Scan Body Smart Matching
Implant scanning mode, easy external scanning, and quick 1-second internal matching of raw data. This allows for faster and more accurate positioning of the scan body, improving the accuracy and completeness of intraoral implant data, and reducing the difficulty of intraoral implant scanning for doctors.
- Metal Scanning
Metal has strong reflection, high noise, and small effective reconstruction area, and is difficult to stitch; key optimizations have been made to address these issues.
- Case Cloud Sharing
No need to send data, simply scan the QR code with a mobile phone to enable cross-platform sharing between computer and mobile. It can be easily shared or discussed with family or friends regarding treatment plans. Both patients and doctors can quickly and intuitively view 3D models of the teeth and detailed data. Data storage is convenient, and it can be upgraded to an oral health report, enabling visualized doctorpatient communication, reducing communication costs, and efficiently supporting digital diagnosis.

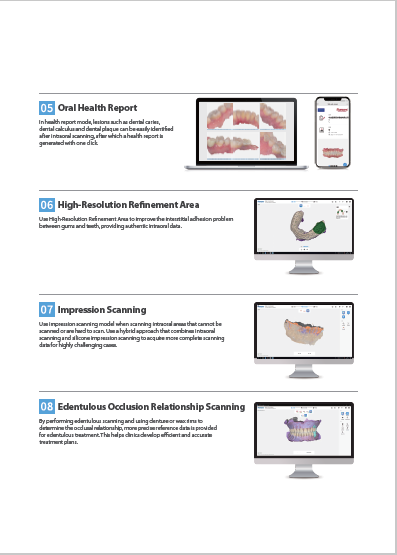

- Oral Health Report
In health report mode, lesions such as dental caries, dental calculus and dental plaque can be easily identified after intraoral scanning, after which a health report is generated with one click.
- High-Resolution Refinement Area
Use High-Resolution Refinement Area to improve the interstitial adhesion problem between gums and teeth, providing authentic intraoral data.
- Impression Scanning
Use impression scanning model when scanning intraoral areas that cannot be scanned or are hard to scan. Use a hybrid approach that combines intraoral scanning and silicone impression scanning to acquire more complete scanning data for highly challenging cases.
- Edentulous Occlusion Relationship Scanning
By performing edentulous scanning and using denture or wax rims to determine the occlusal relationship, more precise reference data is provided for edentulous treatment. This helps clinics develop efficient and accurate treatment plans.
